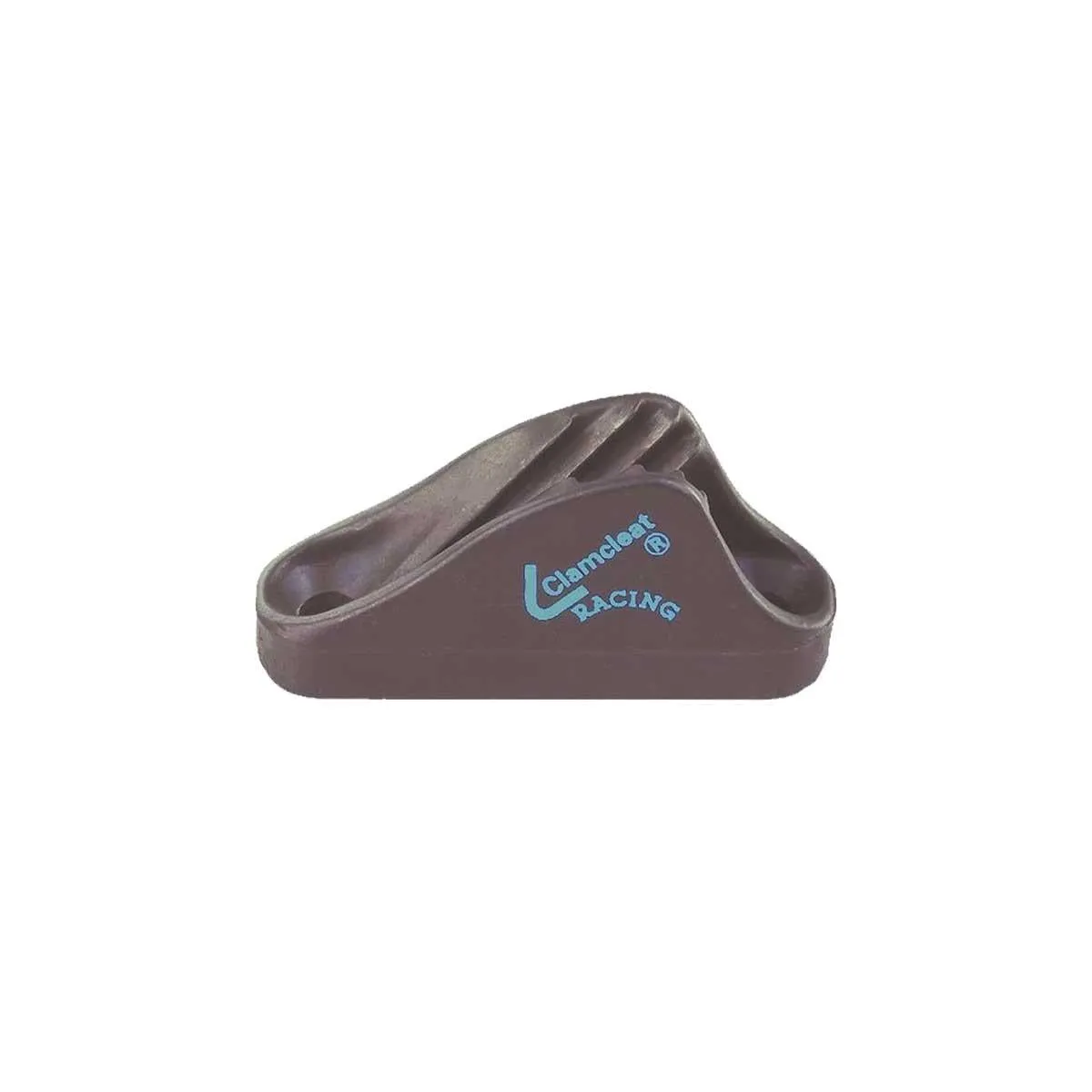

Clamcleat CL222AN Racing Mini Cleat - Hard Anodised
The Clamcleat® CL222AN is an elegant design in aluminium and this version comes in a hard anodised finish.

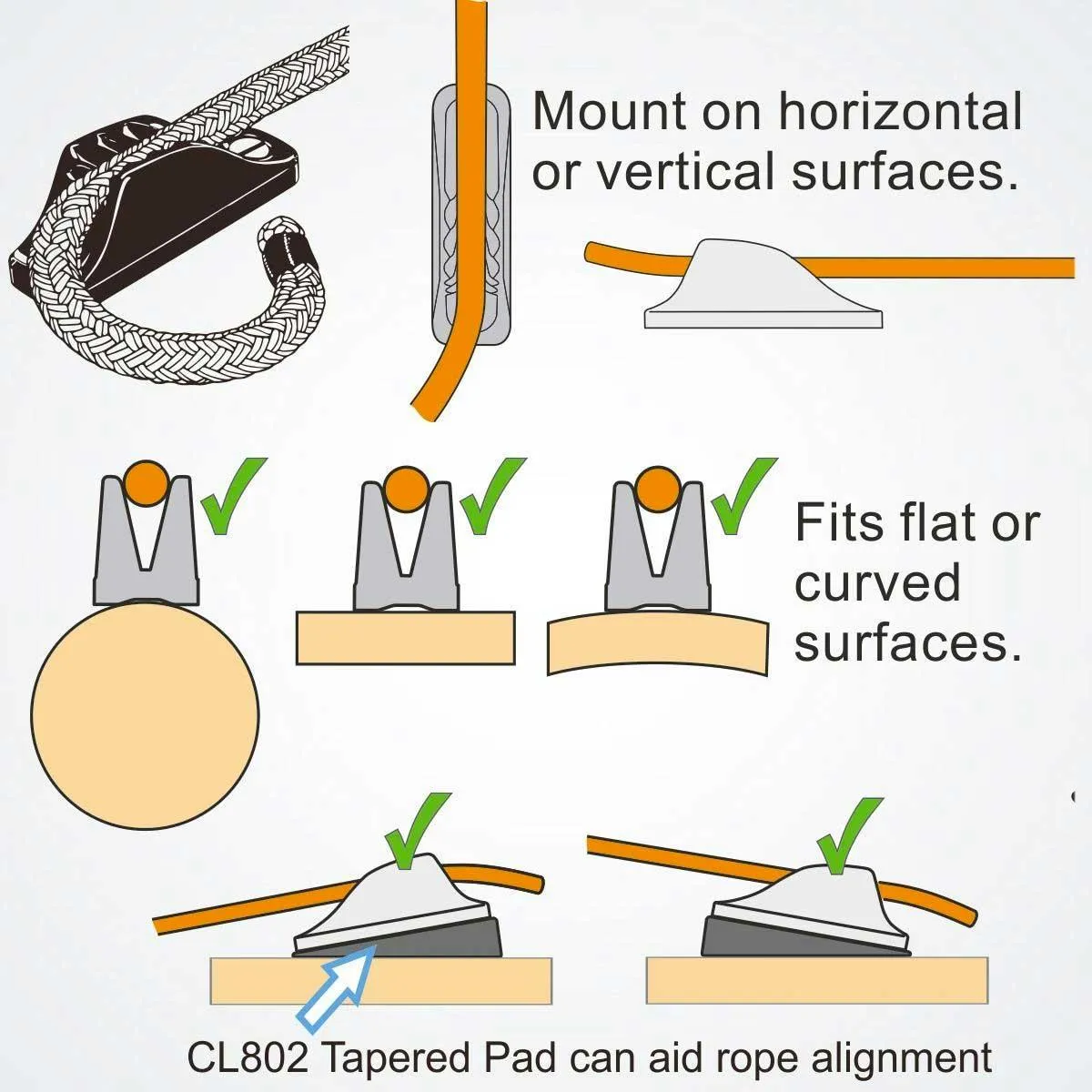

The rope drops down into the teeth. It can be fitted to all flat and curved surfaces, using rivets, countersunk (flathead) screws or bolts.

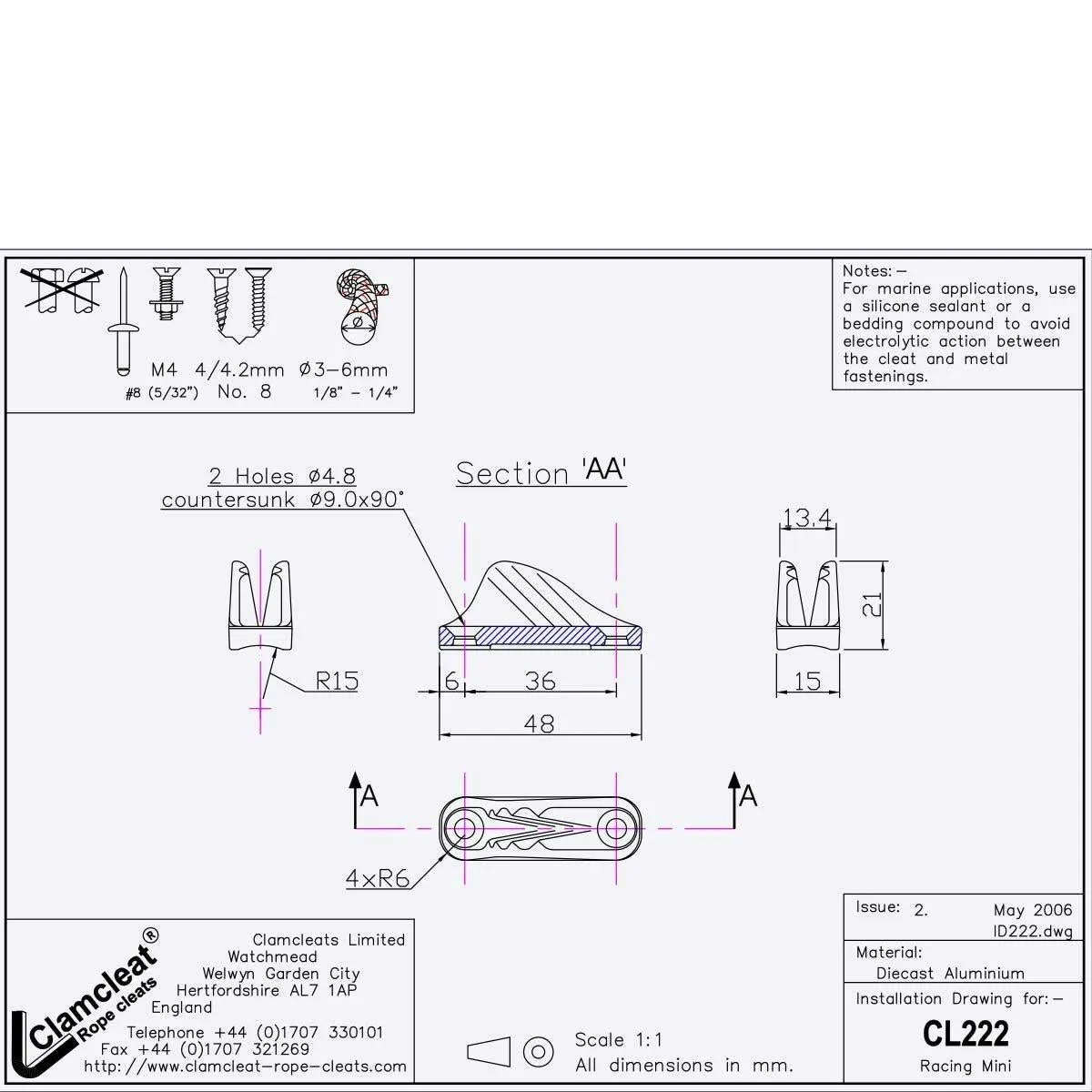

Specifications
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 - 6mm | 1/8 - 1/4" | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 36mm | 1 7/16" | |
| Length | 48mm | 1 7/8" | |
| Width | 15mm | 19/32" | |
| Height | 21mm | 13/16" | |
| Bolt Size | M4 | #8-32. 5/32" | |
| Screw Size | 4.2 | No 8 | |
| Weight | 16gms | 0.6oz |
