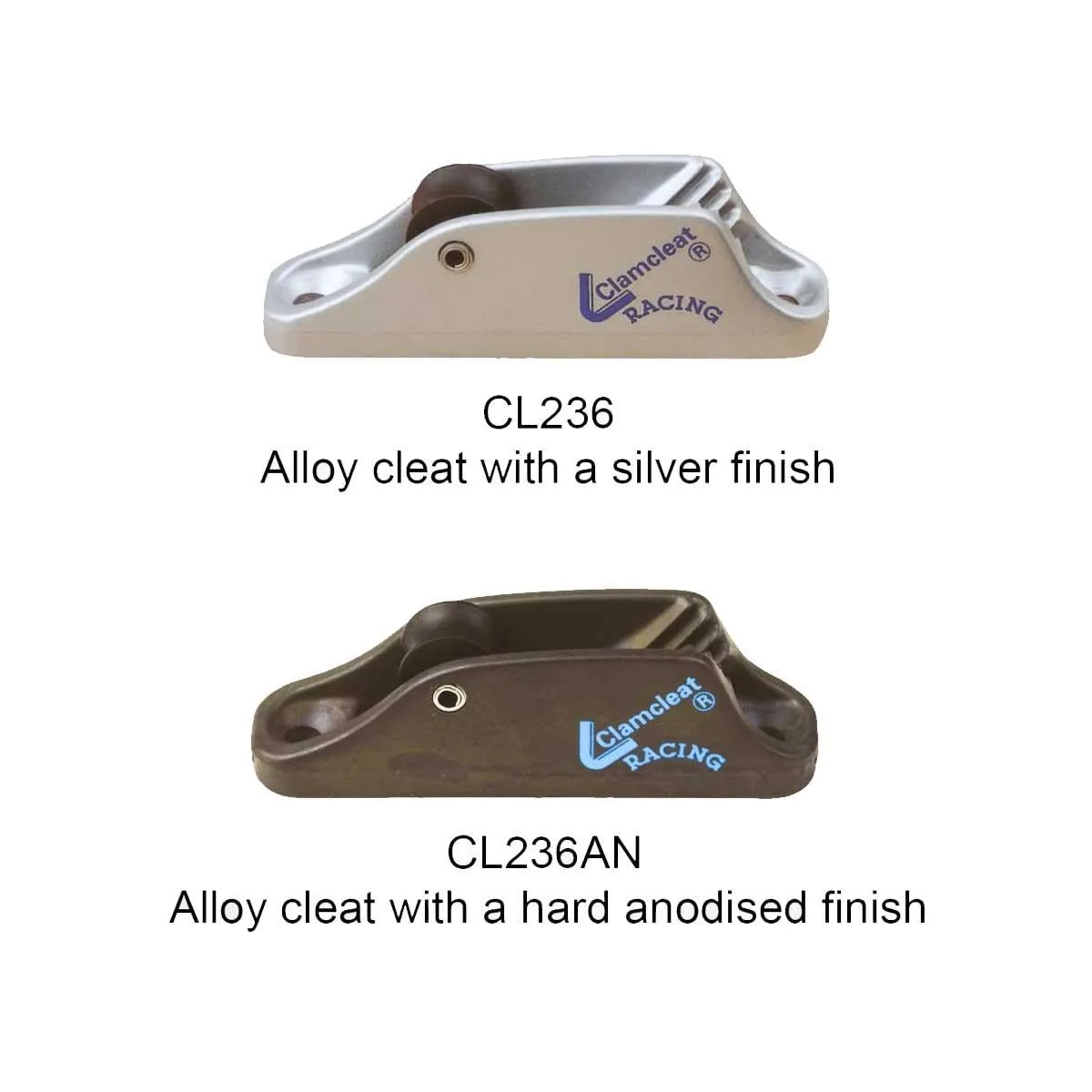

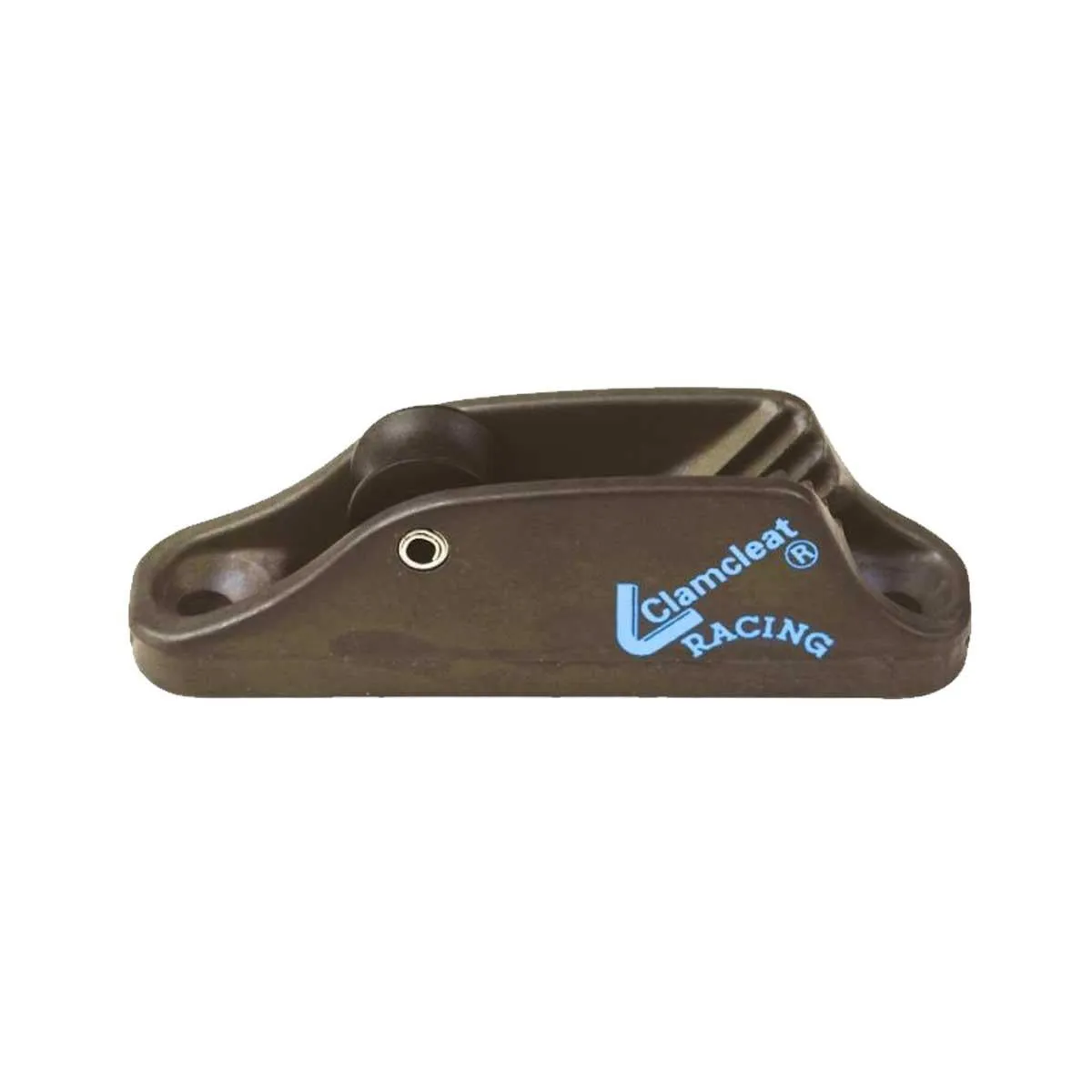

Clamcleat CL236AN Roller Fairlead Mk1 Racing Junior - Hard Anodised

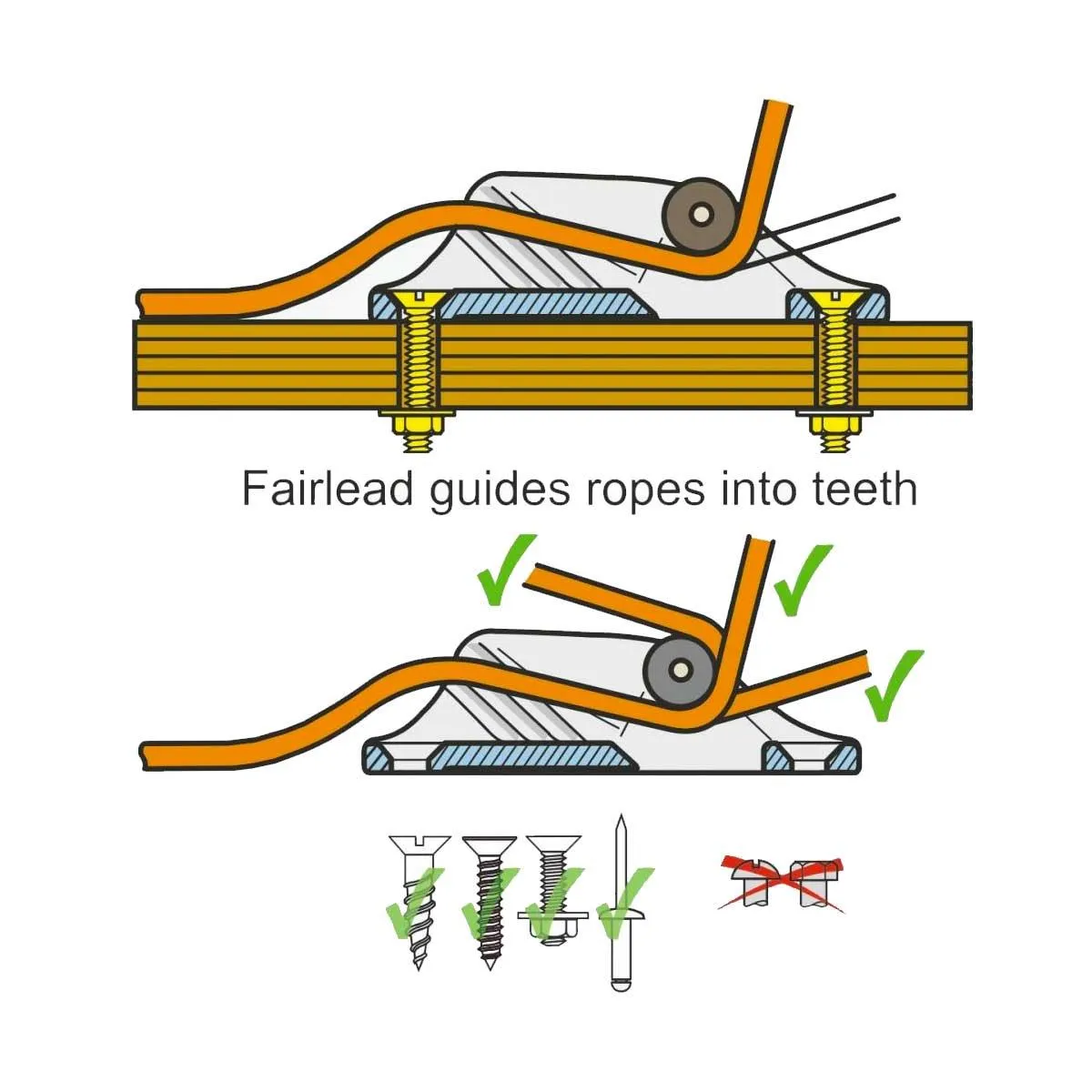

The Clamcleat CL236AN is a hard anodised cleat with a roller fairlead which allows ropes to enter the cleat from above. Can be used for sun umbrellas, shades , sun sails and of course dinghy control lines.
Specifications
| Technical Details | Metric | Imperial | |
|---|---|---|---|

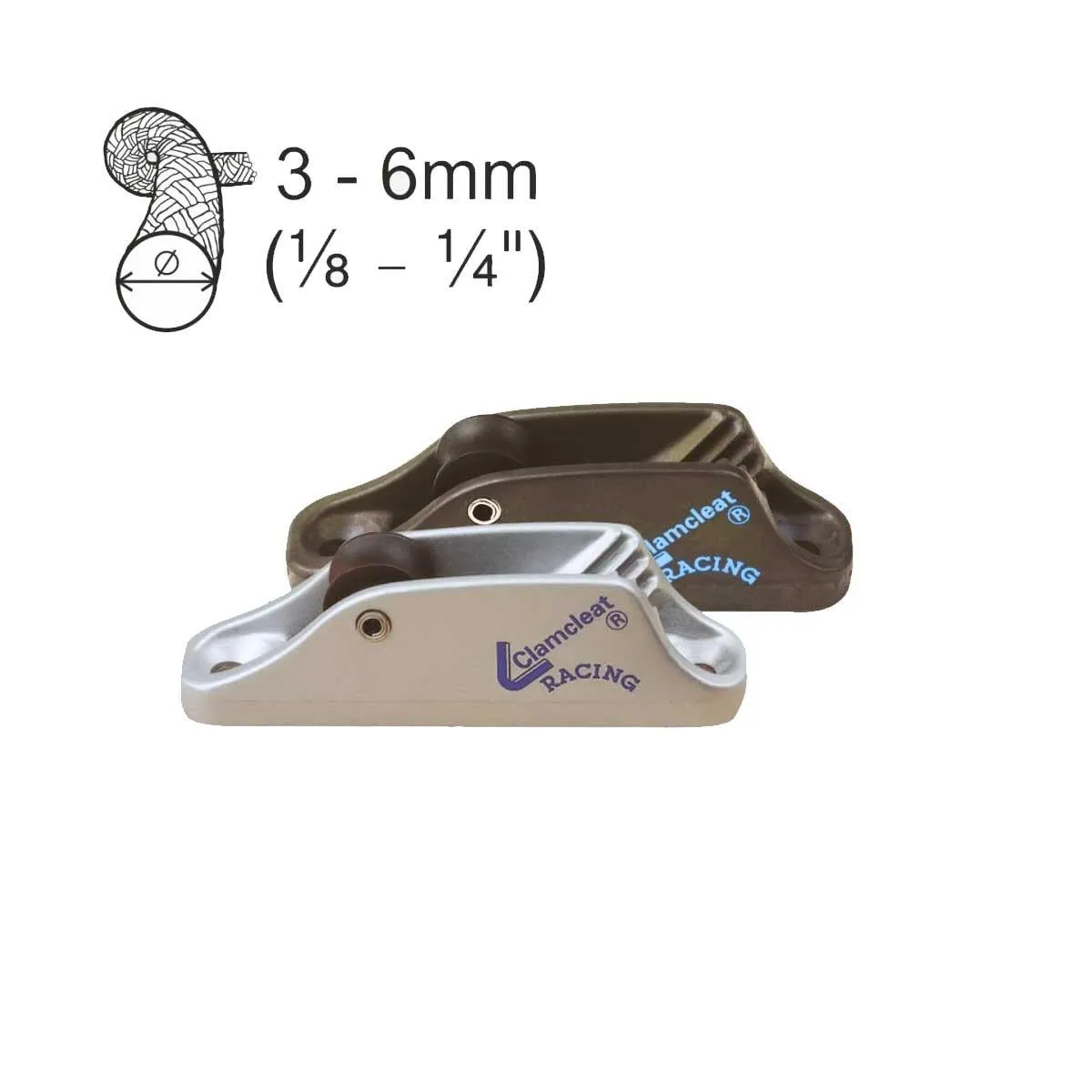

| Rope Diameter | 3 - 6mm | 1/8 - 1/4" | |
| Material | Aluminium & Nylon | Aluminium & Nylon | |
| Hole Centres | 66mm | 2 5/8" | |
| Length | 82mm | 3 1/4" | |
| Width | 18mm | 11/16" | |
| Height | 25mm | 1" | |
| Bolt Size | M5 | #10-24. 3/16" | |
| Screw Size | 4.8 | No 10 | |
| Weight | 40gms | 1.4oz |
