Clamcleat Thru Tube/Deck Sheave Plate - CL835CCAN/R

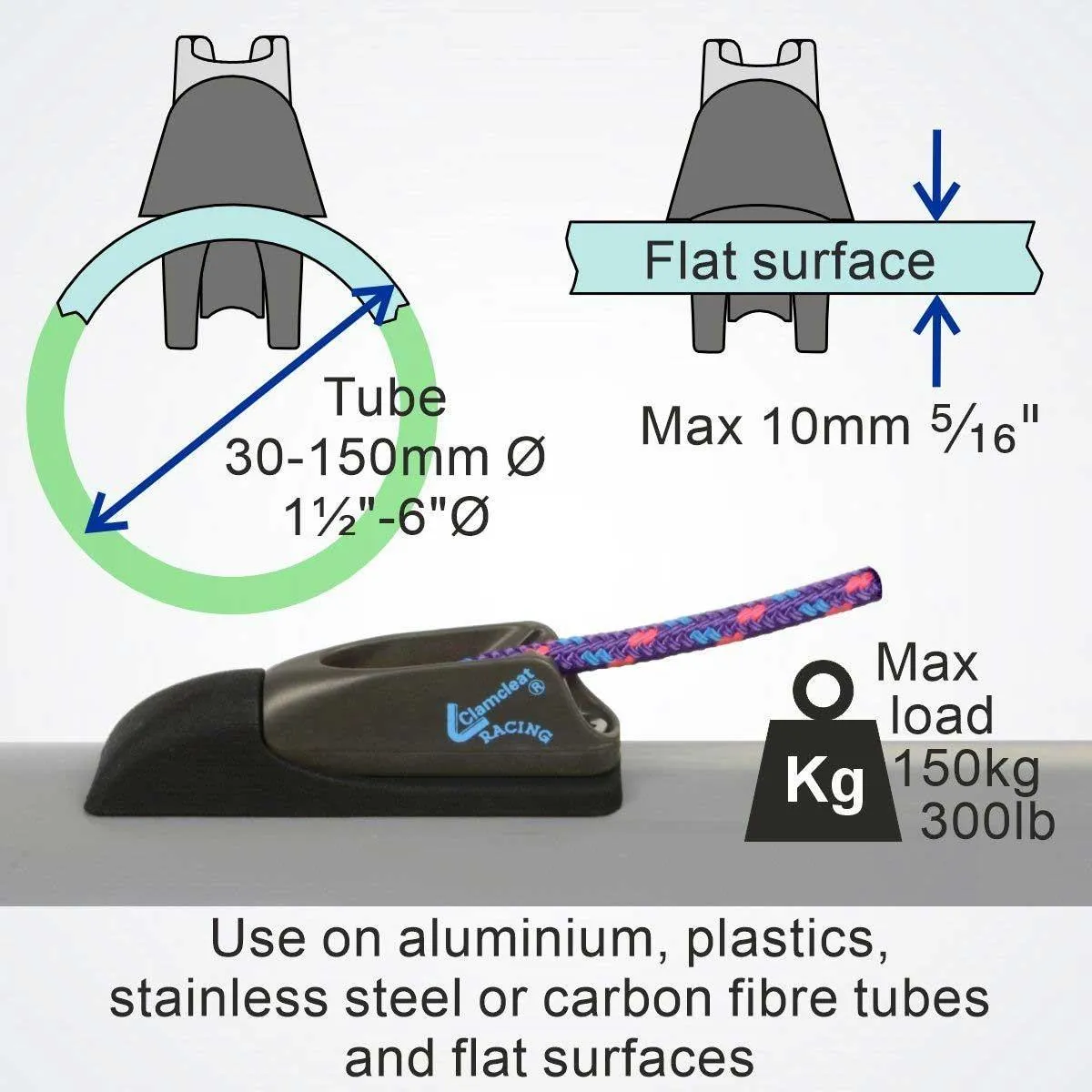

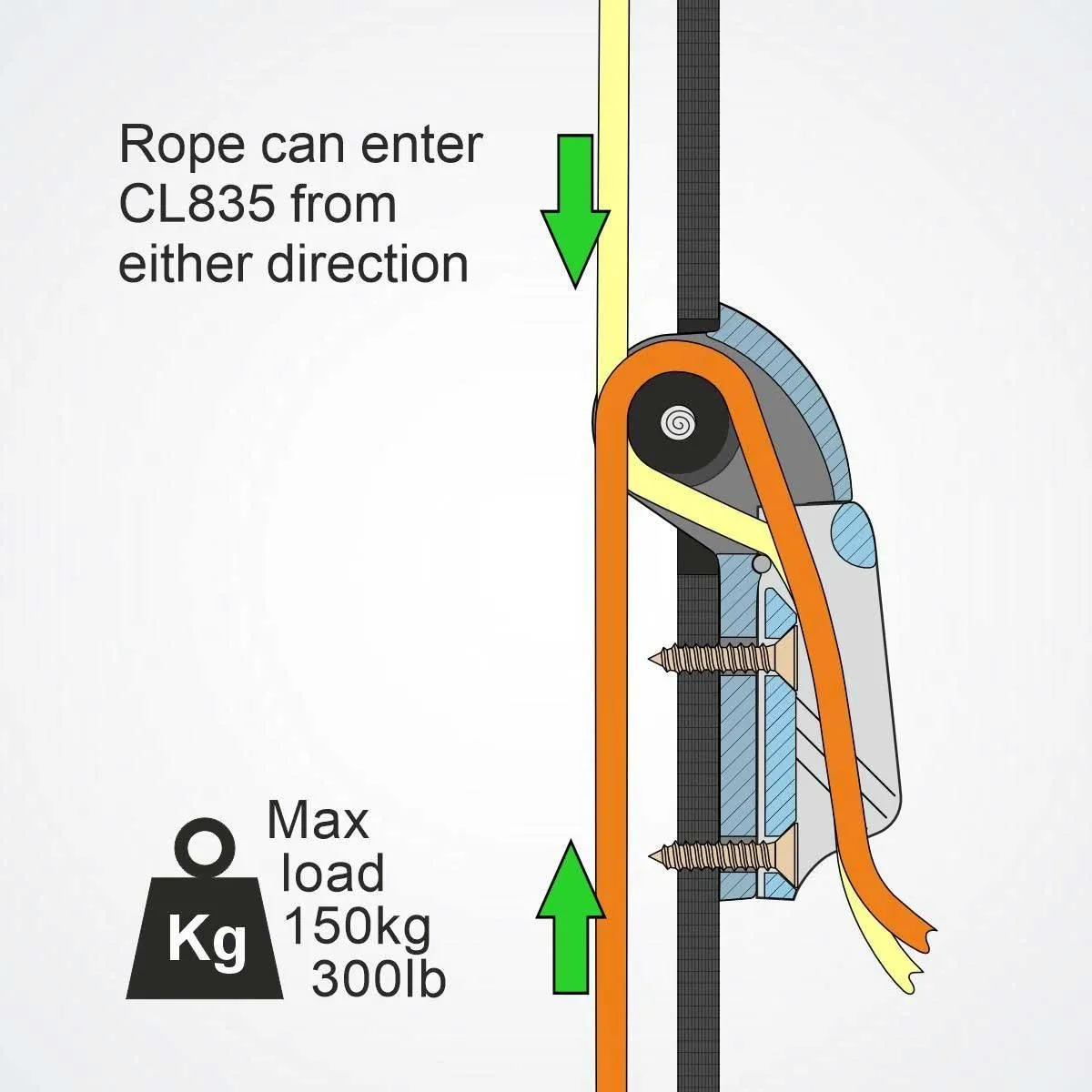

The Clamcleat CL835CCAN/R is designed to take a rope from the inside to the outside of a tube / deck. This sheave plate is made to fit with Aluminium CL211 Mk2 or Nylon CL272 cleats. This can be used for Halyards to help them exit the mast without catching on the edge of the mast due to the sheave.

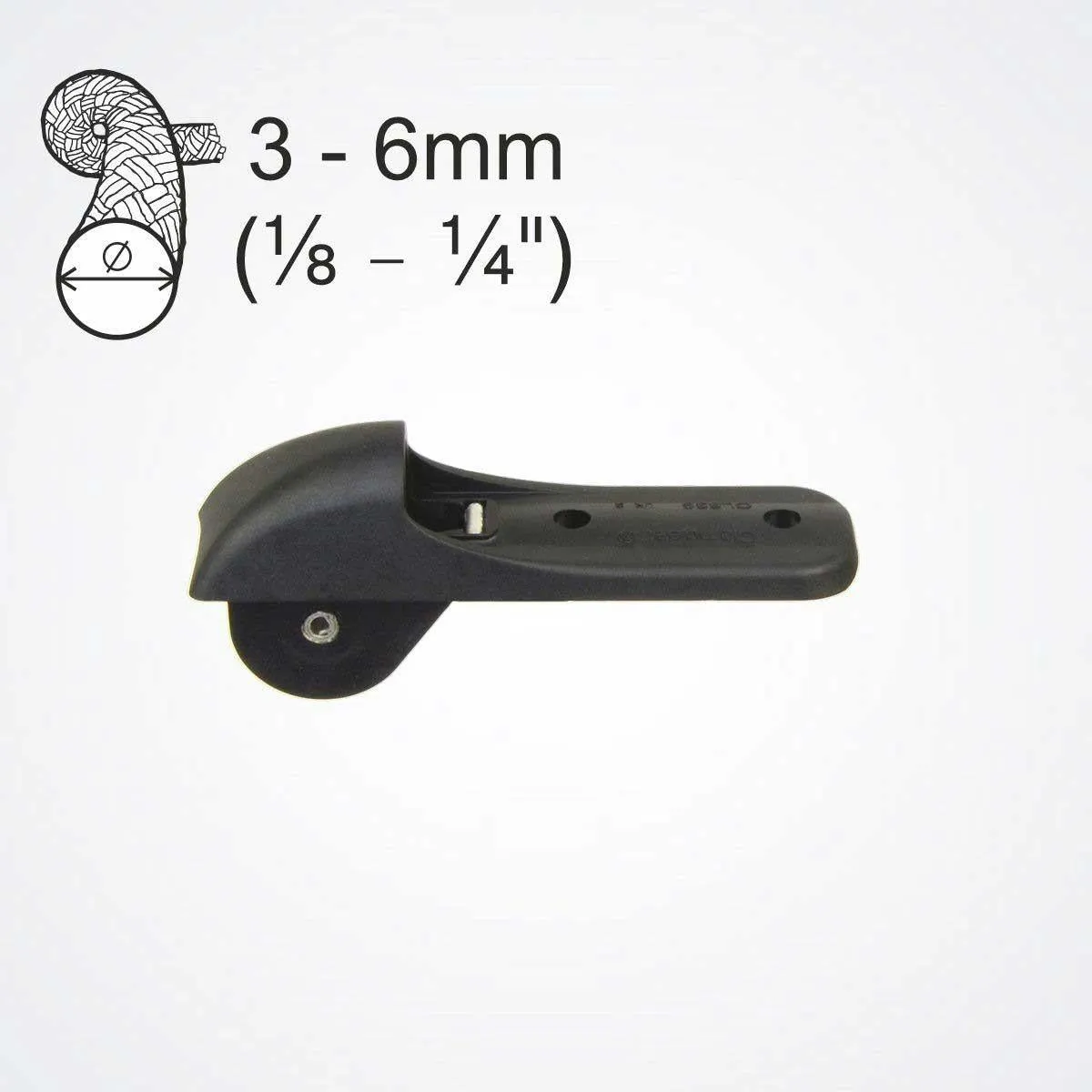

Holds 3-6mm (1/8"-1/4") ropes. Maximum load 150kg (300lb).

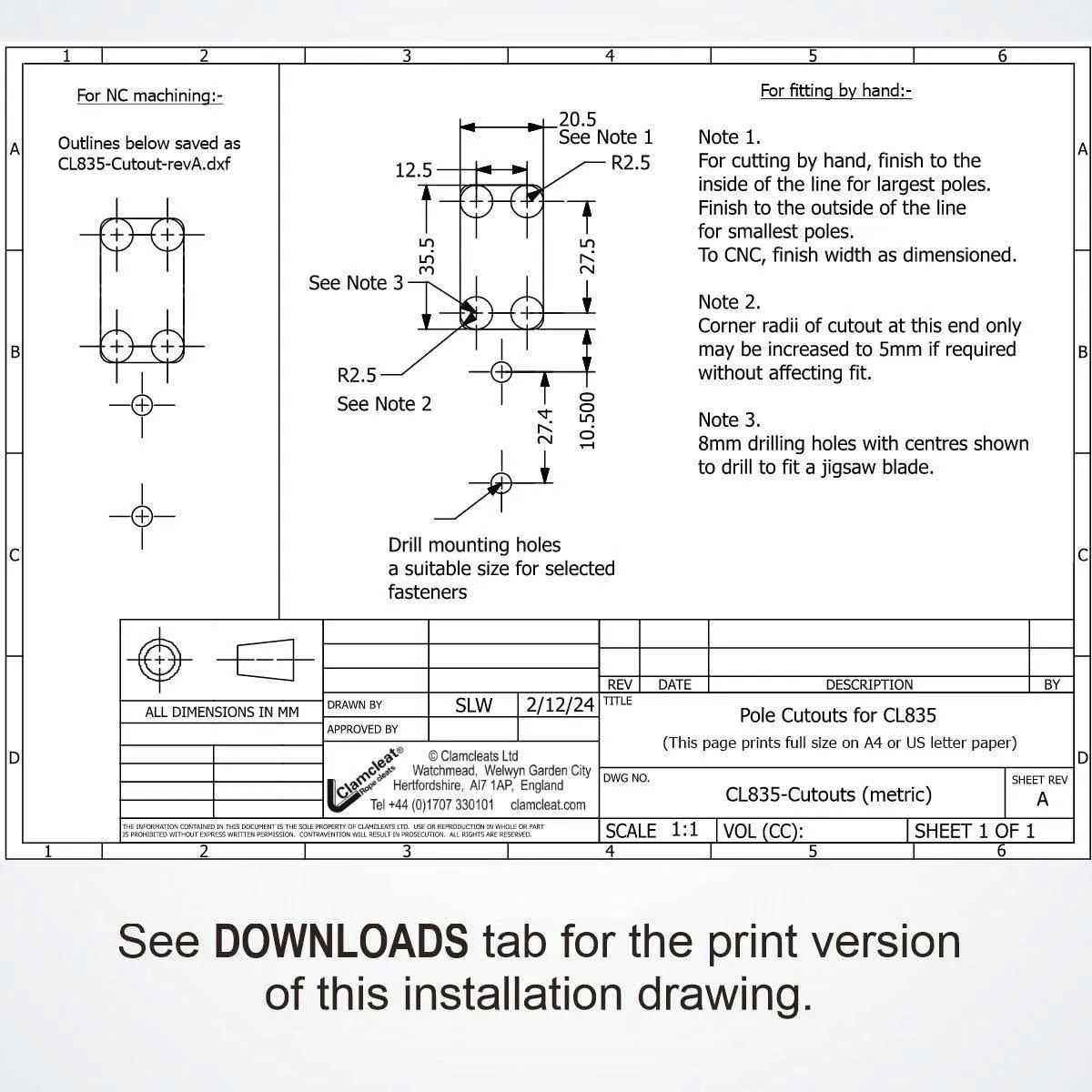

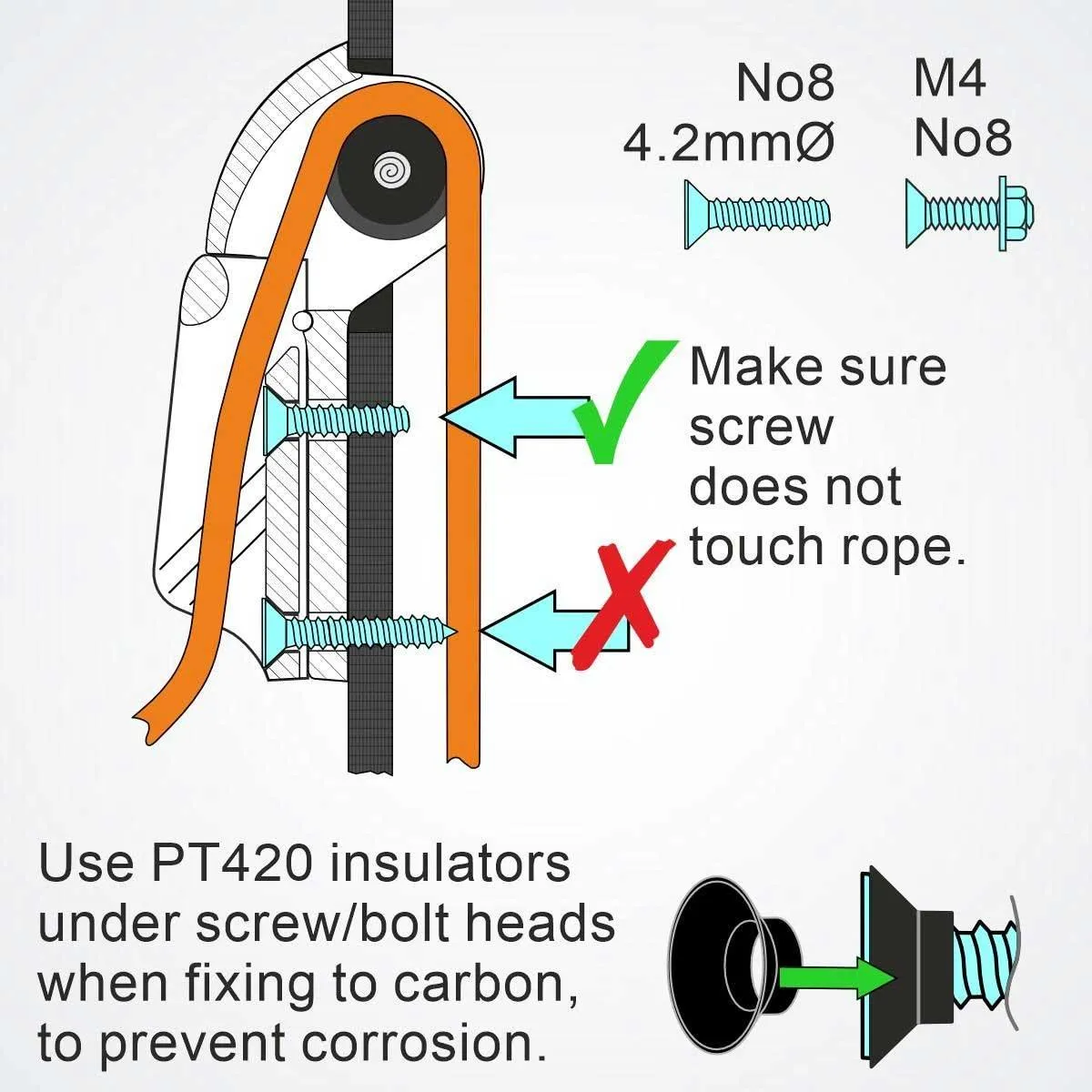

This item includes the following: Cutting template, Sheave Plate CL835, Screws, Hard Anodised Cl211 MK2 Cleat and PT420 Screw Insulators.

Compatable Cleats

• CL211 Mk2/li>
• CL272

Specifications
